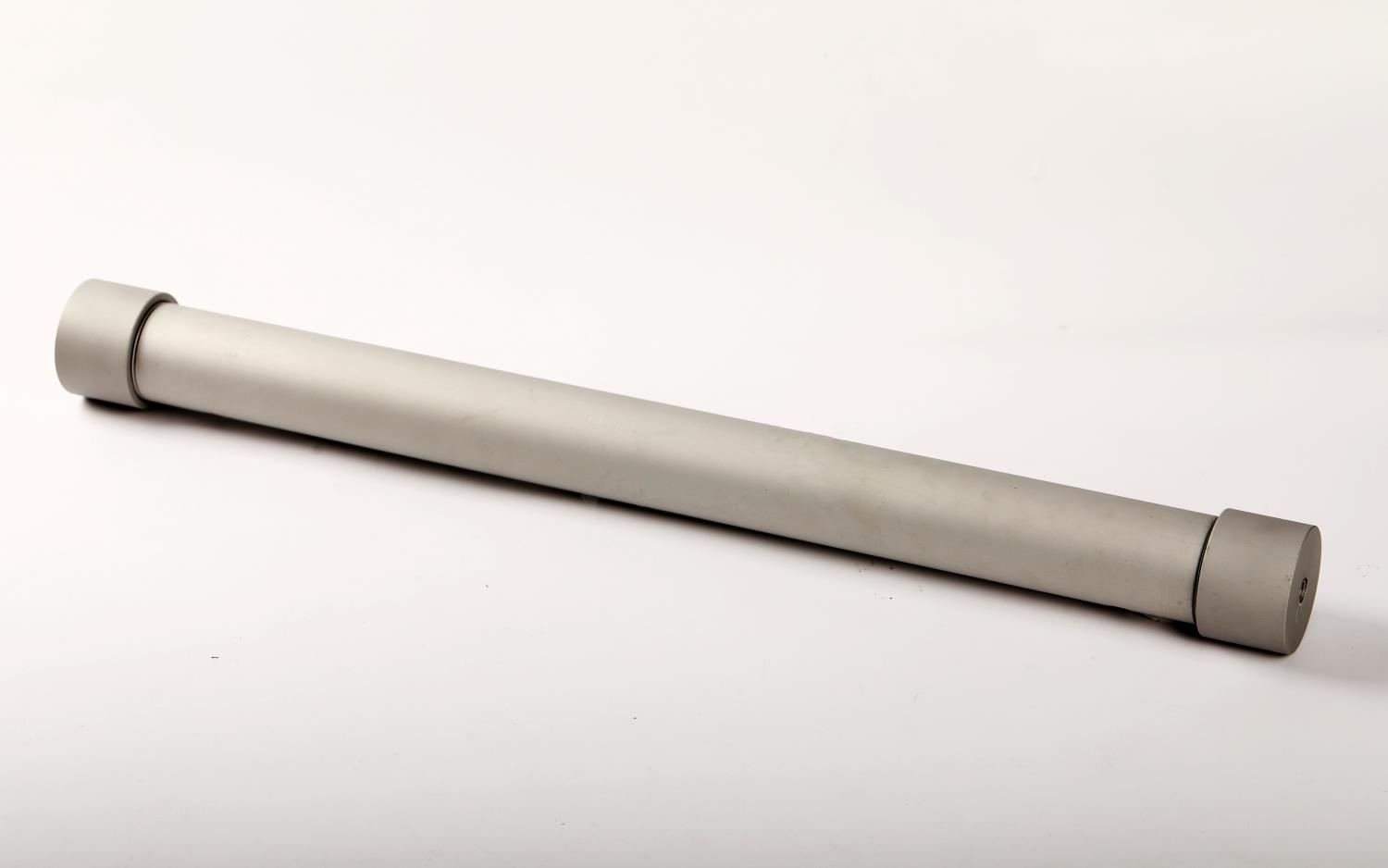

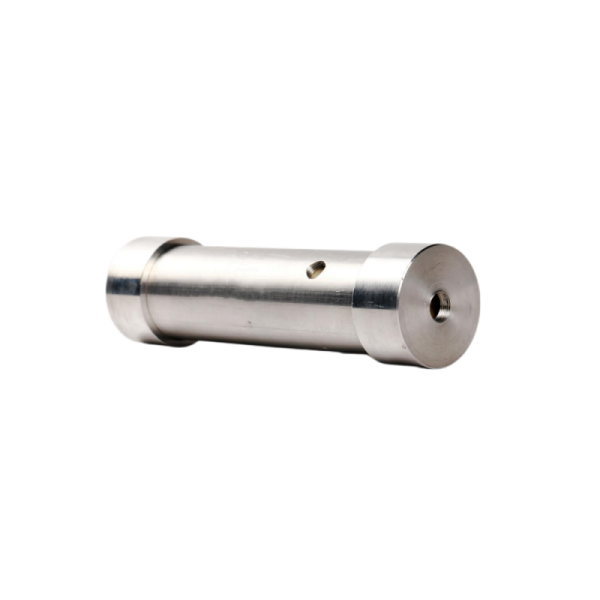

Product Overview
The nitrogen membrane is an advanced gas separation device that efficiently extracts nitrogen-rich gas from ambient air using membrane separation technology. By selectively allowing certain gases to permeate through the membrane, the system separates oxygen and nitrogen, producing clean, dry nitrogen gas. Featuring a compact design, stable operation, simple control, and low energy consumption, nitrogen membrane systems are widely used in oil and gas, chemical processing, electronics manufacturing, metallurgy, and food preservation industries.
Working Principle
The nitrogen membrane operates based on differences in the solubility and diffusion rates of gas molecules through a polymer membrane. When air flows through the membrane module under a pressure difference, faster-permeating gases such as oxygen and water vapor pass through the membrane to form an oxygen-enriched stream, while nitrogen, which permeates more slowly, remains on the retentate side, forming a nitrogen-enriched gas. The entire process is purely physical, requiring no chemical reactions, ensuring safe operation, high reliability, and low maintenance costs.
Key Features
l Made with high-performance polymer hollow fiber membranes for superior separation efficiency
l Dense hollow fiber structure with excellent mechanical strength and pressure resistance
l Large effective membrane area, enabling high gas output per unit volume
l Compact and lightweight design for easy installation and system integration
l Excellent chemical and physical stability, with a typical lifespan exceeding 6 years
l Simple operation, rapid startup, and low energy consumption
l Modular system design, allowing for flexible expansion and easy maintenance
Applications
l Oil and Gas Industry: Pipeline purging, tank blanketing, and inert gas displacement
l Chemical and Metallurgical Processes: Reaction protection, conveying gas, and inert atmosphere control
l Electronics and Telecommunications: Anti-oxidation environments and component packaging protection
l Food and Beverage Industry: Food preservation, beverage bottling, and storage protection
l Pharmaceuticals and Cultural Heritage: Inert gas protection for medicine storage and artifact preservation
l Agriculture and Mining: Explosion prevention, fire suppression, and inert storage environments
l Heat Treatment and Confined Spaces: Used as an inert shielding gas to prevent oxidation and combustion
| Model | N2-751070 | N2-50360 |
| Operating Pressure | 0.7 MPa - 1.0 MPa | 0.7 MPa - 1.0 MPa |
| Operating Temperature | Normal temperature | Normal temperature |
| Dimension | Φ75 × 400 mm | Φ50 × 360 mm |
| Weight | 3 kg | 1 kg |
| Nitrogen Concentration | 30% - 35% | 95% - 99% |
| Recovery Rate | 40% | 40% |
| Nitrogen Flow | ＞20 Nm³/h | ＞2.5 Nm³/h |
