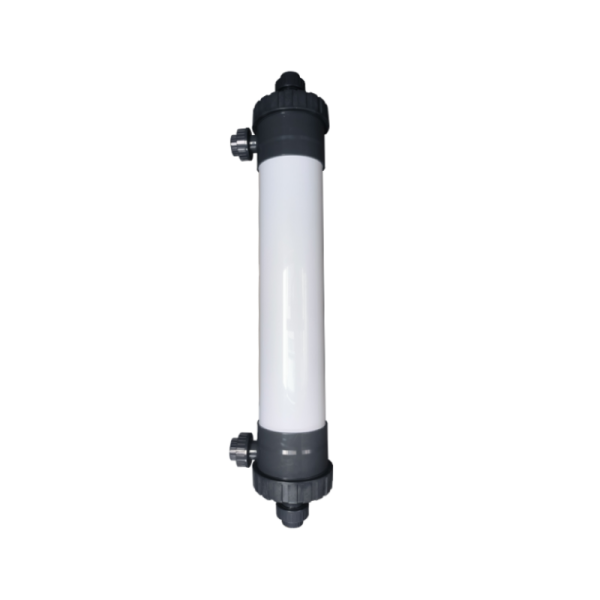

The industrial degassing membrane is a high-efficiency gas–liquid separation device based on PTFE hollow fiber membrane technology. It is designed to remove dissolved gases from various types of liquids.
With its high surface area membrane structure and excellent material stability, the system is widely used in industries such as chemicals, electronics, energy, and precision manufacturing. It helps improve product quality and ensures stable processing performance.
The unit features a compact structure and reliable operation, making it suitable for complex working conditions and a wide range of liquid systems.
The degassing membrane module uses PTFE hollow fiber membranes as the core mass transfer medium. The membrane surface contains numerous micropores. Due to the natural hydrophobic properties of PTFE, liquid water cannot pass through these pores, while dissolved gas molecules can freely diffuse through them.
During operation, the liquid flows inside the hollow fibers, while a vacuum is applied on the outer side of the membrane. This creates a partial pressure difference across the membrane, which drives dissolved gases out of the liquid. The gases pass through the membrane pores and are continuously removed by the vacuum system, achieving efficient degassing.
Depending on process requirements, the system can also be combined with sweep gas or pressurized dissolution methods to further enhance mass transfer efficiency and overall degassing performance.
l Excellent chemical resistance: PTFE membranes provide strong resistance to acids, alkalis, and organic solvents, making them suitable for complex chemical environments
l High degassing efficiency: Effectively removes dissolved gases from various liquids, including battery electrolytes, DMAC, and inks
l Suitable for high surface tension liquids: Maintains stable and efficient performance even when treating high surface tension media
l Flexible process compatibility: Supports vacuum degassing, sweep gas degassing, and pressurized dissolution methods
l Stable and reliable operation: Uniform membrane structure ensures consistent performance for long-term continuous use
l Solvent degassing: Removes dissolved gases from organic and inorganic solvents to improve purity
l Process liquid treatment: Degasses process fluids to ensure product consistency
Defoaming: Reduces bubbles in liquids, improving process stability and product appearance
l Liquid–liquid extraction support: Enhances mass transfer efficiency by eliminating gas interference
l Gas humidification: Enables controlled gas transfer into liquids through membrane diffusion
l Circulating water treatment: Removes dissolved gases to reduce corrosion risk and improve system efficiency
l Chemical processing: Suitable for applications such as alcohol removal and other fine chemical processes, improving reaction and separation performance
| Model | WB-PTFE-4040 | WB-PTFE-8040 | |
| Membrane Component Parameters | Membrane Material | PTFE | |
| Effective Membrane Area | 12m2 | 65m2 | |
| Nominal Pore Size | 0.01μm~0.05μm | ||
| Membrane Type | Hollow Fiber Membrane | ||
| Membrane Component Size | Dimensions | ф90*1225mm | ф200*1445mm |
| Inlet/Outlet Water Connections | DN25 | DN40 | |
| Materials Used | Housing Material | PVC/Stainless Steel | |
| Sealing Material | Epoxy Resin/Polyurethane | ||
| PH Tolerance | 0~14 | ||
| Operating Process | Sweep Gas, Vacuum Vacuum + Sweep Gas Pressurized Dissolved Gas Membrane Absorption and Separation | ||
