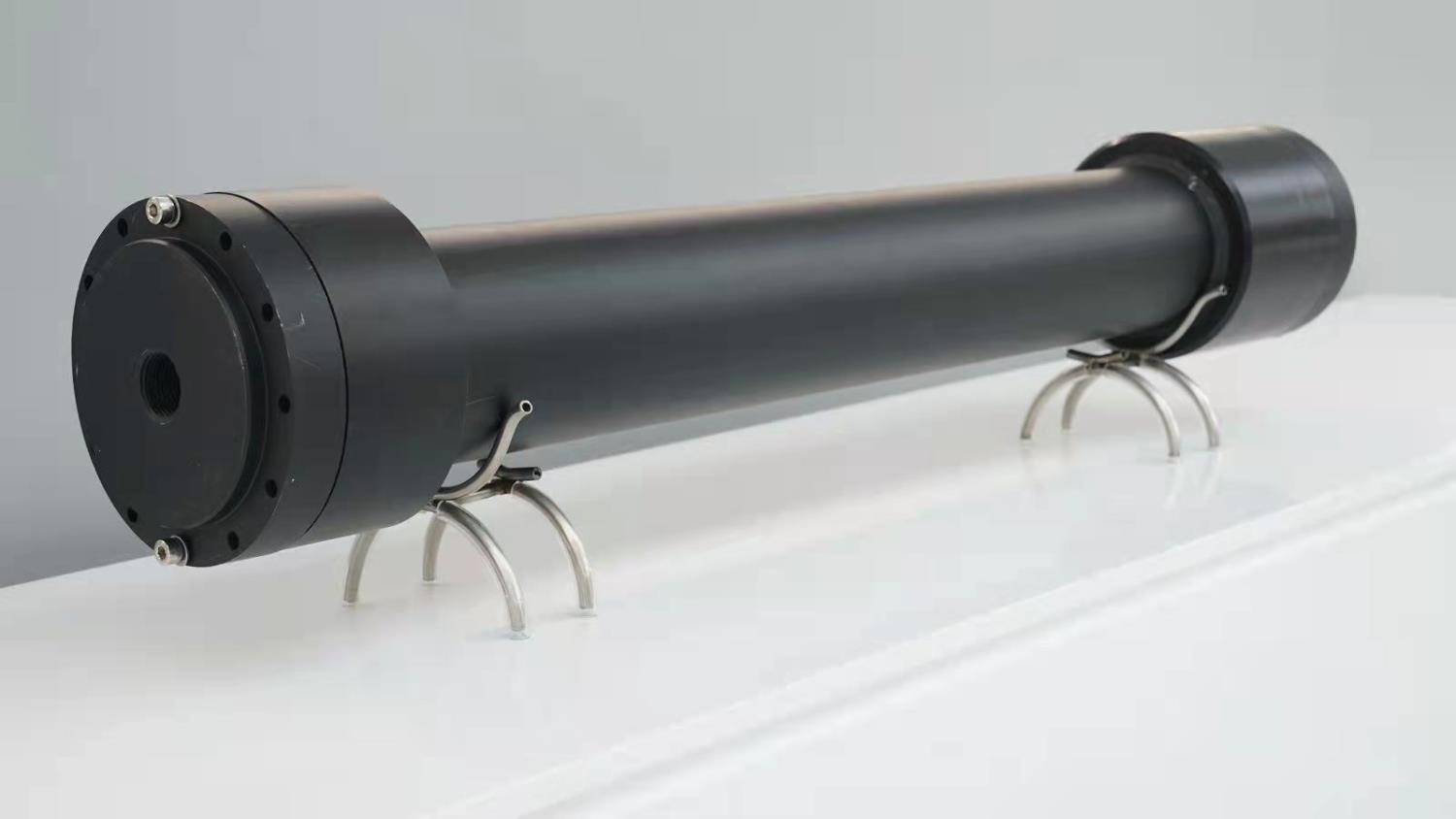

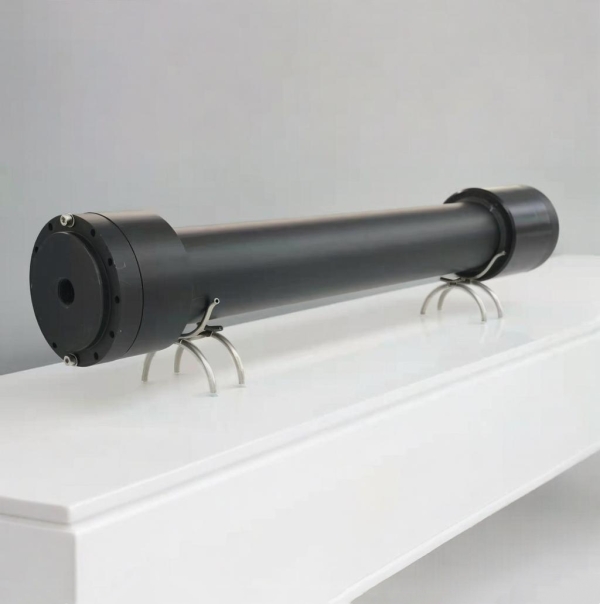

Hydrogen Membrane

Product Overview

The hydrogen membrane is a high-efficiency gas separation solution based on polymer membrane technology, designed for hydrogen purification and recovery.

The system utilizes advanced hollow fiber membrane modules to selectively separate and concentrate hydrogen from mixed gases, significantly improving hydrogen purity and recovery rates. With a compact structure, stable operation, and low energy consumption, it is widely used in chemical processing, refining, and industrial gas treatment applications.

Working Principle

The hydrogen membrane separates gases based on differences in solubility and diffusion rates through polymer materials. When mixed gas passes through the membrane module under a pressure difference, gases with higher permeation rates—such as H₂O, H₂, and CO₂—preferentially pass through the membrane and are enriched on the low-pressure side.

Gases with lower permeation rates—such as CH₄, N₂, and CO—remain on the high-pressure side. Through this selective permeation process, hydrogen is efficiently separated and purified from the gas mixture.

Key Features

· High-Efficiency Separation: Utilizes polymer hollow fiber membranes for excellent separation performance.

· Robust Structure: Hollow fibers have an outer diameter of approximately 0.2–0.4 mm and an inner diameter of 0.1–0.2 mm, maintaining structural stability under high pressure.

· High Packing Density: Large membrane area per unit volume enhances processing capacity and separation efficiency.

· Strong Stability: Excellent chemical and physical stability, suitable for complex operating conditions.

· Long Service Life: Typically exceeds 6 years of operation.

· Compact and Energy Efficient: Small footprint, lightweight design, low operating cost, and high overall efficiency.

Applications

· Ammonia Synthesis Plants: Hydrogen recovery and recycling within ammonia production processes.

· Refining & Petrochemical Industry: Separation and recovery of hydrogen from refinery gas streams to improve resource utilization.

· Fertilizer Production: Hydrogen recovery and purification from process off-gases in fertilizer plants.

· Hydrogen Blending Systems: Precise control and adjustment of hydrogen concentration in process gases.

· Industrial Gas Processing: Separation and purification of hydrogen from various mixed gas streams to enhance system efficiency.
