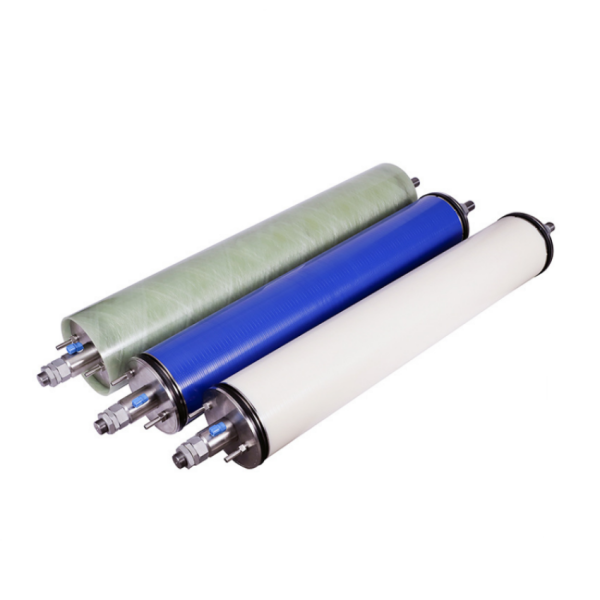

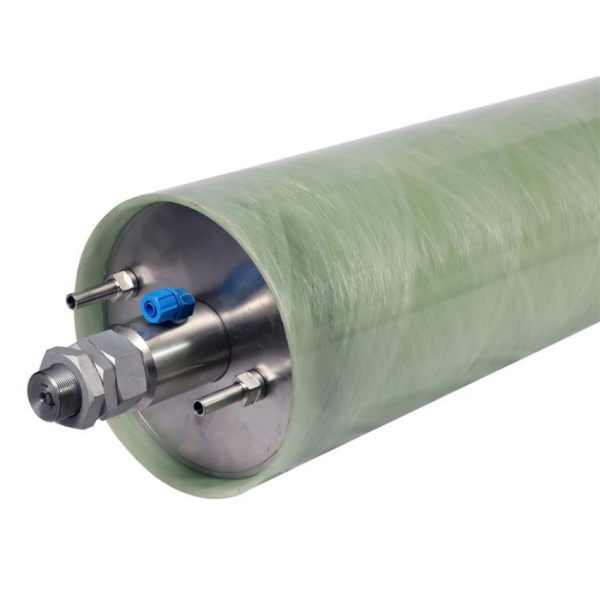

The high-temperature resistant membrane is a high-performance separation product specifically developed for challenging conditions, including high temperature, high salinity, and highly corrosive environments. Through optimized design of the flow distributor, membrane sheets, membrane housing, and sealing components, it achieves long-term stable operation in saltwater at 80 °C.
This membrane offers excellent corrosion resistance and anti-fouling performance. Structural innovations reduce energy consumption and heat loss, providing an efficient and reliable solution for high-temperature wastewater treatment and resource recovery.
The high-temperature membrane operates on a pressure-driven separation mechanism. Under elevated temperatures, it selectively separates solutes from solvents for concentration and purification.
The system uses an isobaric structure to prevent flow maldistribution, while the swirl CD flow distributor optimizes fluid distribution, reduces resistance, and enhances mass transfer efficiency. The central tube is made of chlorine-resistant material, supported by an outer tie-rod structure, ensuring stable operation and high separation performance under high-temperature, high-pressure conditions.
l Excellent High-Temperature Performance: Stable operation in saltwater at 80 °C.
l Strong Anti-Fouling Ability: Resistant to scaling and clogging.
l Lower Energy Consumption: Swirl CD flow distributor reduces pressure loss by approximately 50% compared to conventional designs.
l Optimized Structural Design: Increased packing density by nearly 40%, significantly improving treatment efficiency.
l High Corrosion Resistance: Key components made from chlorine-resistant materials for extended service life.
l Stable and Reliable Operation: Isobaric structure prevents flow maldistribution, ensuring consistent performance.
l Significant Energy Savings: Reduced heat loss and improved overall energy utilization.
l Fermentation Liquid Treatment: Efficient separation and concentration in high-temperature fermentation systems to enhance product recovery.
l Oilfield Produced Water Treatment: Purification and resource recovery of high-temperature, saline wastewater.
l Seawater Desalination Concentrate: Further concentration of high-temperature brine generated from thermal desalination processes.
l Industrial High-Temperature Wastewater: Widely applied in chemical, energy, and other industries for separation and reuse of hot wastewater.
| 项目 | 参数值 |
| 膜片材质 | 聚酰胺复合反渗透 |
| 最大操作压力 | 90 bar |
| 单支膜面积 | 15.0 ㎡（199片膜片） |
| 膜通量范围 | 视水质情况，5~30 LMH |
| 进水流量 | 建议 650~900 L/H，最大不超过 1000 L/H |
| 回收率 | 视水质情况，单支回收率 ＜45% |
| 脱盐率 | 最低脱盐率 97%，稳定脱盐率 97.5% |
| 单支膜平均压降 | 2~4 bar |
| 流道宽度 | 1.8 mm |
| 耐受余氯 | ＜0.1 ppm，建议完全去除余氯 |
| 操作温度 | ＜80℃ |
| pH 范围 | 长期运行：6~8 |
| 重量 | 干重：99 kg；湿重：139 kg |
| 测试条件 | 32000 ppm NaCl 溶液，70℃，pH 7.0±0.5，进水压力 65 bar，30% 回收率 |
