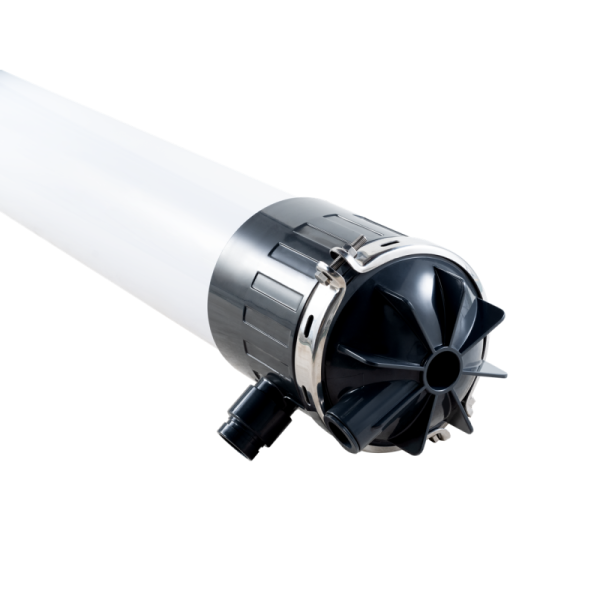

The high-loading column-type ceramic membrane is an inorganic ultrafiltration membrane developed from traditional tubular and flat ceramic membrane technologies, specifically designed for water treatment.
Manufactured from high-strength α-Al₂O₃ and sintered at high temperatures, it features excellent heat resistance, chemical corrosion resistance, and mechanical strength. Each membrane tube offers a filtration area of 10–25 m², with high packing density and strong treatment capacity, effectively removing suspended solids, bacteria, and colloids.
This membrane is widely used in applications such as safe drinking water, municipal water supply and wastewater treatment, emergency water supply, water reuse, and industrial wastewater treatment.

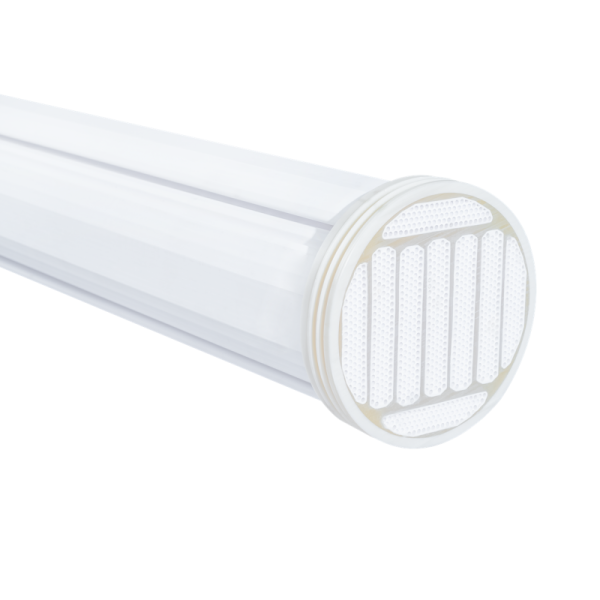

The column-type ceramic membrane consists of a multilayer asymmetric ceramic structure, including a support layer and a separation layer.
Liquid flows through 2–4 mm channels in the membrane column, creating a cross-flow pattern. Large particles and colloids are retained on the membrane surface, forming a cake layer, while purified water passes through to the permeate side. Proprietary flow channel design optimizes feed and permeate distribution and enhances backwashing efficiency, ensuring high-flux operation.
Ceramic membranes are resistant to high temperatures and chemical corrosion and can withstand high-pressure operation and backwashing, providing long-term stable filtration performance.
· High-strength inorganic ceramic support ensures durability and long service life.
· Large filtration area per membrane tube and high packing density deliver high throughput and water production capacity.
· Excellent chemical resistance allows broad chemical cleaning conditions.
· 2–4 mm membrane channels improve backwash efficiency and pressure tolerance.
· Proprietary flow channel design ensures uniform feed and permeate distribution and high operational efficiency.
· High mechanical strength withstands high-pressure filtration and backwashing.
· Suitable for low-quality feed water with strong tolerance to water quality fluctuations.
· Narrow pore size distribution and multilayer structure enhance fouling resistance and simplify cleaning.
· Petroleum and chemical wastewater treatment
· Municipal sewage purification and reuse
· Safe drinking water and emergency water supply
· Industrial process wastewater treatment
· Lithium extraction from salt lakes and process water treatment
| 膜组件型号 | WBCM-10 | WBCM-12 | WBCM-15 | WBCM-25 |
| 膜面积 (m²) | 10 | 12 | 15 | 25 |
| 膜组件尺寸 (L1×L2×D1, mm) | 1452×1030×205 | 1452×1030×205 | 1752×1330×205 | 1710×1260×250 |
| 进出接口尺寸 (D2、D3, mm) | — | 60 | 60 | — |
| 产水量 (m²/h) | 0.8~2.5 | 1~3 | 1.2~3.8 | 2~6.3 |
| 膜孔径 (nm) | — | 30、 50、100 | 30、 50、 100 | — |
| 膜通量直径 (mm) | — | 2~4 | 2~4 | — |
| 膜材质 | a-Al₂O₃、 ZrO₂ | |||
| 密封形式及材质 | 密封圈或灌胶、氟橡胶、三元乙丙橡胶、 全氟醚橡胶或环氧树脂等 | |||
| 膜组件材质 | UPVC、SS、 FRP | |||
| 过滤形式 | 内压式、 死端过滤、微错流过滤 | |||
| 保存方式 | 干法保存 | |||
