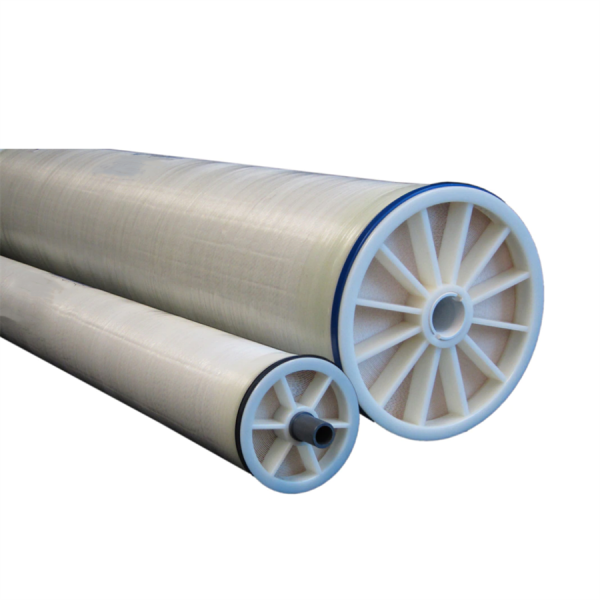

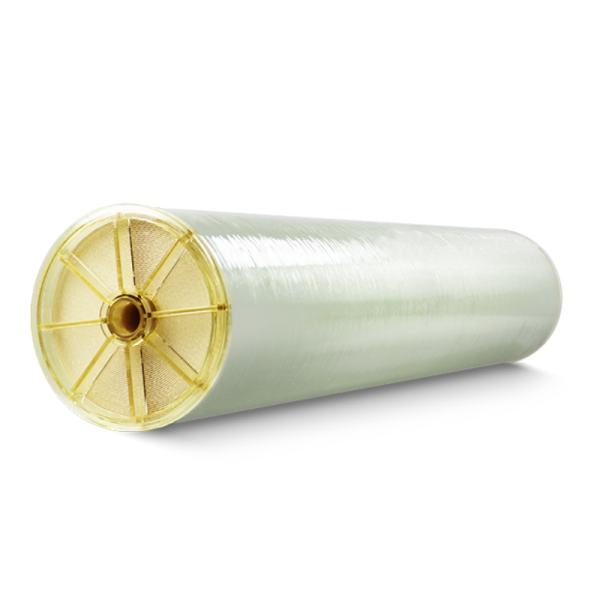

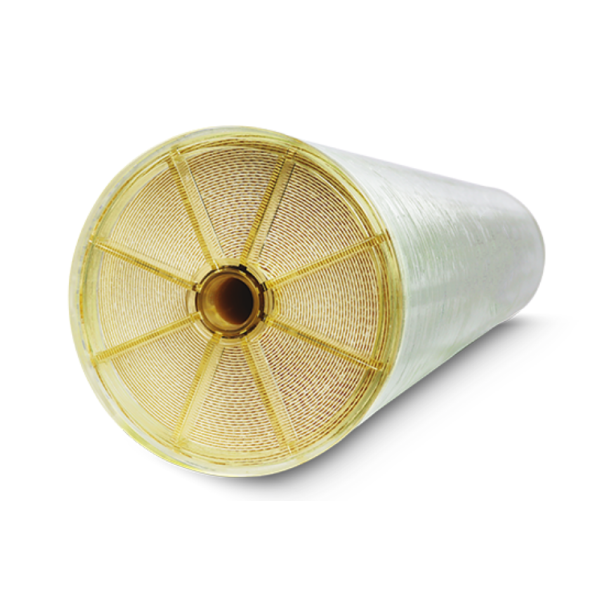

The Anti-Oxidation Reverse Osmosis Membrane Element is a high-performance separation material developed to address the susceptibility of conventional polyamide membranes to oxidative damage. Through innovative manufacturing processes and structural optimization, this membrane significantly enhances oxidation resistance, enabling stable operation in environments containing oxidizing agents and during online chemical dosing for disinfection.
The product combines high salt rejection with extended service life, reaching up to approximately twice the lifespan of conventional imported RO membrane elements. It is ideal for high-demand separation and purification applications.
The membrane features a specially designed anti-oxidation selective layer that maintains high separation performance while improving resistance to oxidative substances. Under pressure-driven conditions, water molecules preferentially pass through the membrane, while dissolved salts, organic compounds, and impurities are effectively rejected.
In addition, advanced element encapsulation technology enhances the structural stability of the membrane module, minimizing performance degradation caused by oxidation. This allows the system to operate continuously under online disinfection conditions while maintaining high separation efficiency and permeate quality.
• Excellent oxidation resistance: Withstands oxidizing disinfectants and supports online chemical dosing
• High salt rejection: Effectively removes dissolved salts and impurities
• Extended service life: Up to approximately 2× longer than conventional imported RO membranes
• Stable performance: Maintains efficiency under complex water quality and oxidative conditions
• Improved anti-fouling capability: Reduces performance decline caused by oxidative damage
• Robust structure: Advanced encapsulation enhances overall mechanical strength
• Electronic-grade hydrogen peroxide production: Purification to meet ultra-high purity requirements
• Chemical solvent purification: Suitable for purification and concentration of isopropanol and similar solvents
• Seawater desalination: Stable operation in oxidizing environments
• High-salinity wastewater treatment: Treatment of complex and saline wastewater streams
• Oxidative wastewater treatment systems: Suitable for processes requiring online disinfection dosing
• Precision separation applications: High-standard industrial water treatment and resource recovery systems
| Membrane Element Model | RO-8040-75 | RO-8040-105 |
| Stable Salt Rejection (%) | 99.8 | 99.7 |
| Average Permeate Flow GPD (m³/d) | 7500 (28.0) | 10500 (39.7) |
| Effective Membrane Area ft² (m²) | 400 (37.2) | 400 (37.2) |
| Feed Spacer mil | 28 | 28 |
| Maximum Operating Pressure | 1200 psi (8.28 MPa) | 600 psi (4.14 MPa) |
| Maximum Feed Water Temperature | 45℃ | 45℃ |
| Maximum Feed Flow Rate | 25.0 m³/h | 17.0 m³/h |
| Maximum Feed SDI15 | 5 | 5 |
| Maximum Residual Chlorine | ＜0.1 mg/L | ＜0.1 mg/L |
| Feed pH Range (Continuous Operation) | 1–12 | 2–11 |
| Feed pH Range (Chemical Cleaning) | 1–13 | 1–13 |
| Maximum Allowable Pressure Drop per Element | 15 psi (0.1 MPa) | 15 psi (0.1 MPa) |
