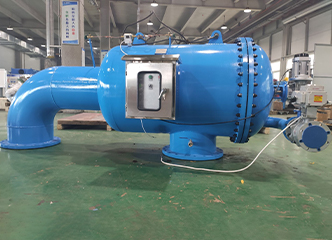

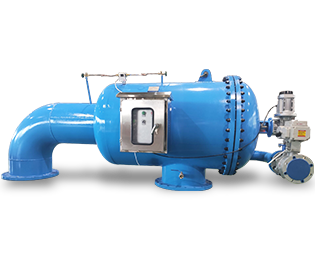

Right-Angle Self-Cleaning Filter

‌Product Description

The right-angle self-cleaning filter is an efficient filtration solution for the treatment of a wide range of liquids, with filtration accuracy from 50 to 5000 microns. The filter has a large filter area and a high contaminant capacity, which can be customized according to the actual working conditions. The cleaning method is simple, with cleaning cycle monitoring function, can realize automatic cleaning and blowdown. All parameters in the automatic filter control system can be adjusted to meet different application requirements. In addition, the equipment is equipped with motor overload protection to ensure the safe and stable operation of the motor.




Product characteristics

Mechatronics design: The automatic self-cleaning filter is composed of main components such as drive mechanism, control pipeline, main assembly, filter element assembly and cleaning mechanism to ensure efficient operation.

Flexible control system: The filter is equipped with a PLC control system, which can automatically identify the degree of impurity deposition in the filter, and provide a variety of control methods (such as differential pressure control, time setting control and manual control), which supports one-click switching to automatic operation.

Excellent cleaning effect: The internal scraper system with stainless steel rotating shaft and tetrafluoroidal scraper ensures good scraping effect, while the filter permeability is high, wear-resistant and can withstand high temperatures.

High-performance filter element: The use of 304/316L stainless steel wedge-shaped metal mesh filter element, support 20-500μm customization, with good cleaning and low pressure loss, low maintenance costs.

Stable operation: The key components of the equipment are imported bipolar reducer and Siemens PLC control system to ensure the efficient and stable operation of the entire equipment system.




Scope of application

Widely used in agricultural irrigation, raw water treatment, industrial recycling water filtration, cooling water treatment, paper industry, plastics industry and power industry and other fields, especially suitable for the treatment of suspended solids, particulate matter, water quality dirt, bacteria and algae and rust.
