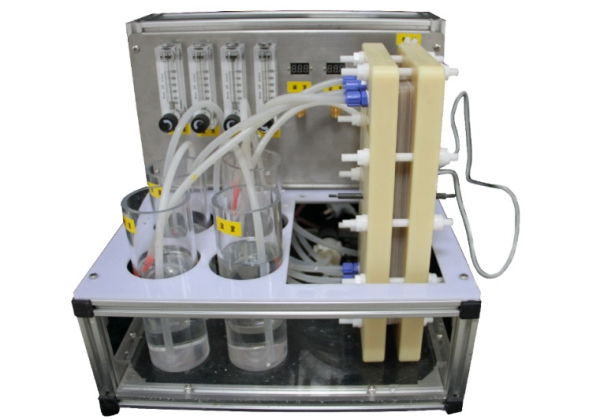

Electrodialysis Laboratory Equipment


‌Overview of Electrodialysis Laboratory Equipment





Electrodialysis laboratory equipment is an experimental device designed to separate liquids and remove ions based on the principle of electrodialysis. It utilizes the selective ion permeability of ion-exchange membranes under an electric field to separate and purify dissolved salts or other charged substances from aqueous solutions. Electrodialysis technology finds applications in fields such as water treatment, seawater desalination, wastewater treatment, chemicals, and the food industry. Laboratory-scale electrodialysis equipment is used to study the feasibility of electrodialysis processes and optimize parameters.



Working Principle



The key principle of electrodialysis equipment is ion migration driven by an electric field. Under the influence of the electric field, cations move toward the cathode and anions move toward the anode. Selective anion-exchange and cation-exchange membranes allow specific ions to pass through while others are retained. Through a multi-stage membrane stack structure, the equipment concentrates or removes salts or other charged substances from water, resulting in a purified solution.

Equipment Parameters





1.Dimensions: 380400380mm


2.DC Power Supply: 60V, 5A / 60V, 10A


3.Minimum Circulating Volume: 500mL





Technical Features




1.Efficient Separation: Electrodialysis, driven by an electric field, effectively separates charged ions such as sodium and chloride ions from water.

2.Energy Saving & Environmentally Friendly: Compared to thermal methods, electrodialysis does not require heating, making it energy-efficient and suitable for large-scale industrial applications.


3.Good Selectivity: With the use of selective ion-exchange membranes, it precisely separates specific ions, improving the purity of desalinated water.

4.High Experimental Flexibility: The compact structure of the equipment allows for easy parameter adjustment, making it suitable for testing a variety of experimental protocols.

5.Multi-Purpose: The device can be used for ion concentration, desalination, and resource recovery for a wide range of experimental needs.




Applications




1.Seawater Desalination: Removes salts from seawater to produce potable fresh water.

2.Industrial Wastewater Treatment: Removes heavy metal ions and pollutant ions from wastewater, enabling the reuse of wastewater as a resource.

3.Food Industry: Used in the production of desalinated foods such as cheese and soy sauce.

4.Pharmaceuticals and Chemicals: Separates and purifies charged ion components in chemical processes, aiding in the production of high-value products.

5.Experimental Research: Used by universities and research institutions for optimizing electrodialysis processes and developing new materials.
