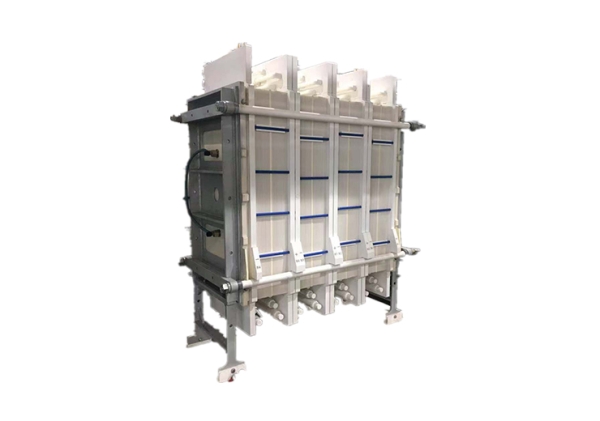

Electrodialysis Membrane Equipment


‌Overview of Electrodialysis Membrane Equipment





Electrodialysis membrane equipment utilizes ion migration under an electric field to achieve the separation, desalination, and concentration of charged ions through ion-exchange membranes. This technology is widely used in water treatment, seawater desalination, wastewater recycling, food processing, pharmaceuticals, and chemical industries. The selective ion-exchange membranes enable the efficient separation of charged ions, improving water quality or recovering valuable substances.





Working Principle






The core principle of electrodialysis membrane equipment is ion migration and selective permeability under the influence of an electric field. In the process, cations migrate towards the cathode, while anions move towards the anode. The equipment alternates between anion-exchange membranes and cation-exchange membranes, each allowing only specific ions to pass through. As a result, the equipment can remove salts from the solution, effectively achieving desalination and purification.





Technical Features



1.Efficient Desalination: Driven by an electric field, the equipment effectively removes salts from solutions, ideal for treating high-salt wastewater and seawater desalination.


2.Low Energy Consumption: Electrodialysis operates without heating, resulting in significantly lower energy consumption compared to traditional thermal desalination methods.

3.Selective Ion Separation: The system can selectively separate specific ions based on their type and size, enabling high-precision ion removal.

4.Modular Design: The equipment features a compact structure with membrane stacks that can be adjusted based on treatment volume, making it adaptable to different scales of water treatment.

5.Environmentally Friendly: The process produces no secondary pollution, and the desalinated water can be reused or safely discharged, meeting environmental standards.



Applications



1.Seawater Desalination: Used to remove salt from seawater, producing fresh water for various uses.


2.Brackish Water Treatment: Treats underground or brackish water by reducing salt content and improving water quality.

3.Industrial Wastewater Treatment: Removes ions from high-salinity wastewater in industries like electroplating and pharmaceuticals, reducing pollutant discharge.

4.Food Industry: Applied in the desalination of food products such as cheese, seasonings, and fruit juices for purification and concentration.



5.Pharmaceuticals and Chemicals: Separates and purifies specific ions during the production of pharmaceuticals and chemicals, preparing high-purity materials.
